Description

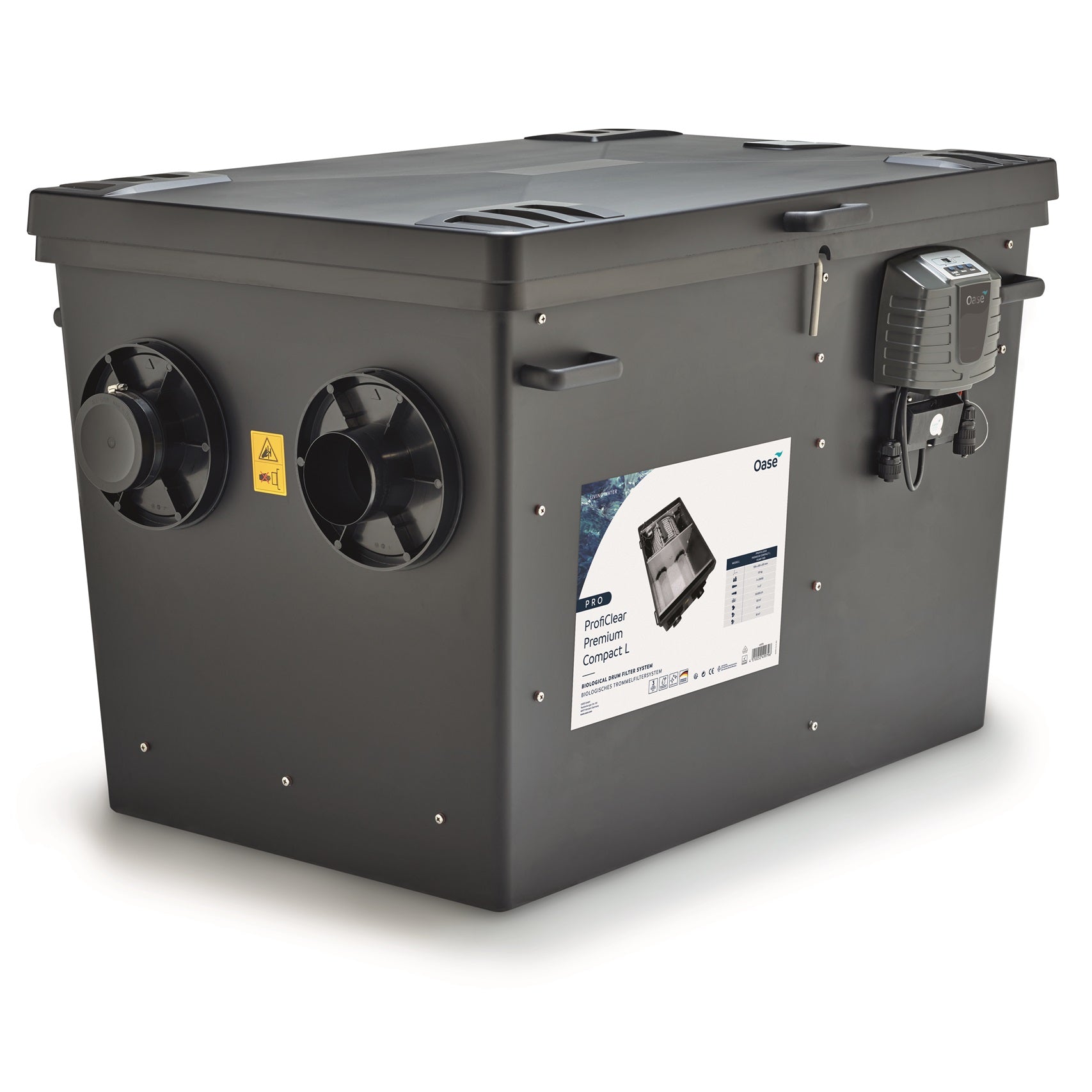

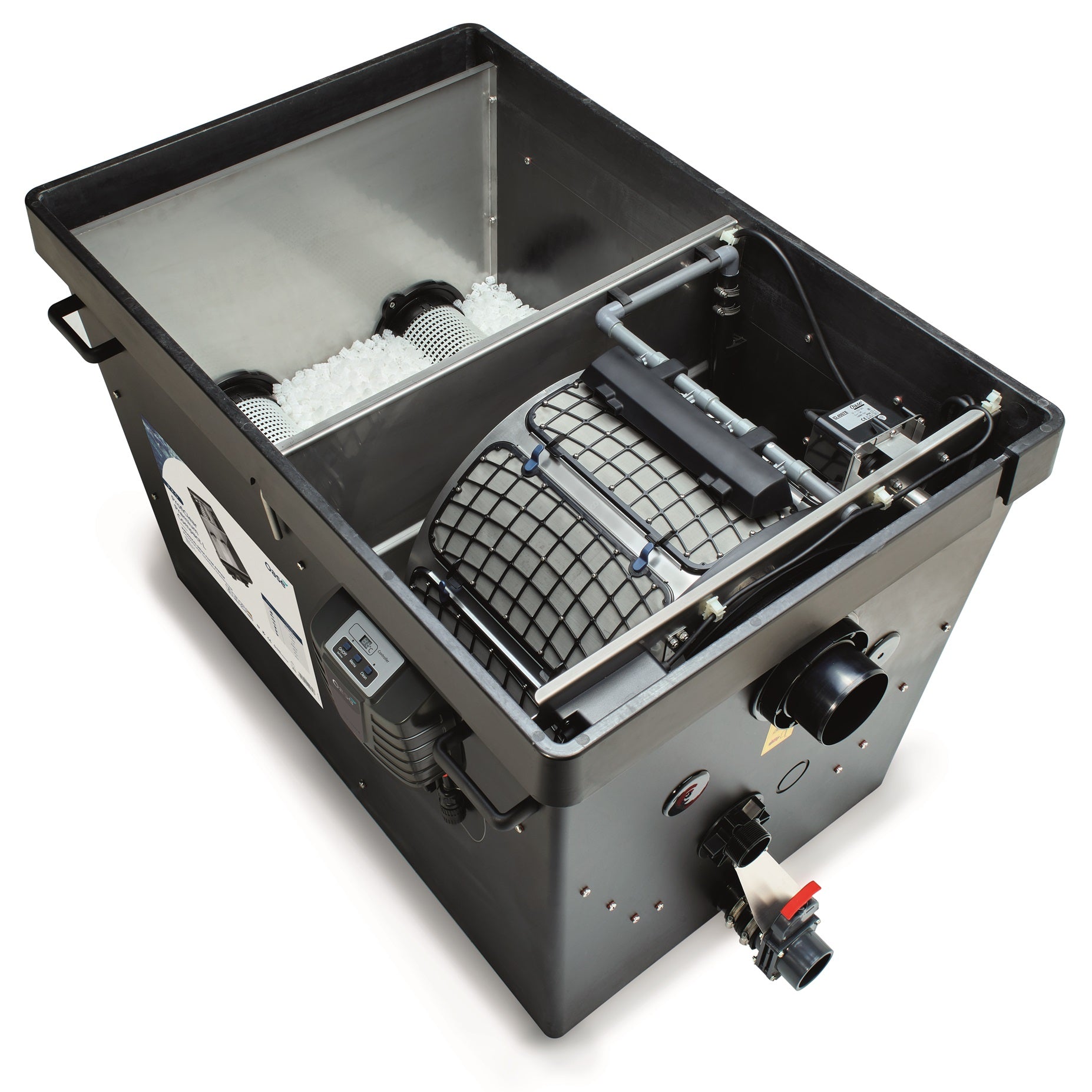

The Oase innovative compact drum filter from the ProfiClear Premium range is the affordable alternative for small to medium-sized bodies of water. The compact modular filter system is particularly ideal for koi ponds up to 30 m³. Leading koi experts were consulted during the development of the series. In the pumped principle, the maximum water flow rate of the filter is 20,000 litres per hour. In this completely self-cleaning drum filter unit, the moving bed system ensures optimum water movement and cleaning. Professional Hel-X biomedia effectively break down nutrients and pollutants in the water. A depth filtration of up to 60 microns and a new Hel-X 13 filter medium with a significantly larger surface area ensure high separation efficiency.
- Suitable for ponds up to 120.0 m3
- Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit
- Inexpensive alternative for smaller ponds, particularly koi ponds
| Dimensions (L x W x H) | mm | 1334 x 891 x 815 |
| Rated voltage | 230 V / 50 Hz | |
| Power consumption | W | 5 |
| Power consumption, cleaning | W | 1050 |
| Cable length | m | 5.00 + 1.00 |
| Net weight | kg | 134.50 |
| Limited Warranty | Years | 2 + 1 |
| Biological filter surface | m2 | 57.3 |
| Biological filter surface protected | m2 | 48.4 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 60 |
| Number of nozzles/rinse quantity | 4 x 2.5 l/min | |
| Scavenging pump | 6 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 2 |
| Inlet connections | mm | 50 |
| Inlet connections | 1 x 2" + Bitron | |
| Number of outlets | Units | 2 |
| Outlet connections | DN 110 | |
| Sludge discharge connections | DN 75, DN 110 | |
| Flush trough connection | DN 110 | |
| Connection to | AquaOxy 2000, Bitron C 72 - 110 W, Bitron Eco 120 - 240 W | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 20000 |
| Installation height above water level | cm | 37.0 |
| Type of use | Pump fed system | |
| Other | Aeration pre-installed incl. 60l Hel-X 13 Biomedia |
