Description

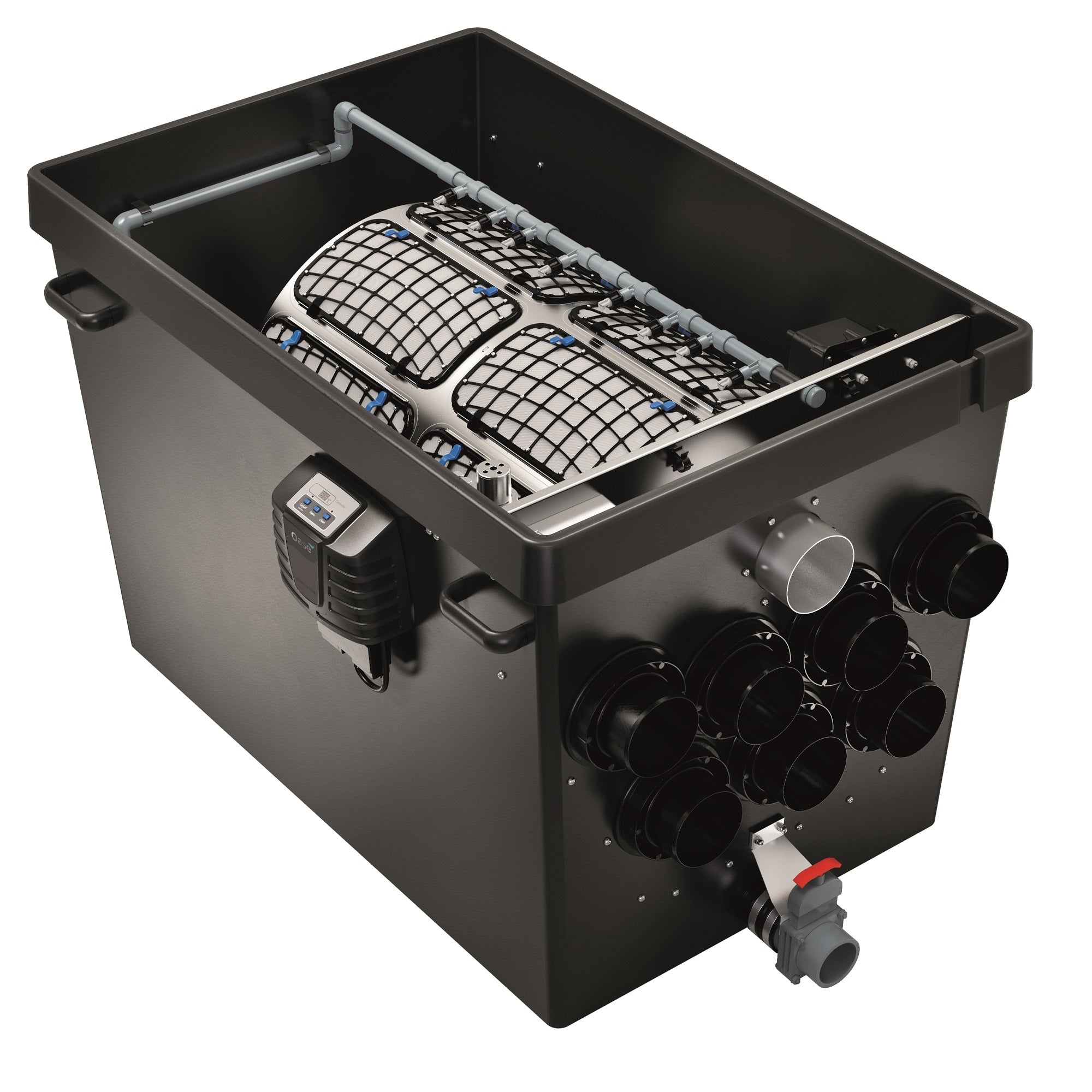

Professional modular filter system for large natural and swimming ponds up to 530 m³ and koi ponds up to 100 m³ for outstanding water quality in the smallest of spaces – thanks to particularly high filter performance with intelligent control functions and intelligent self-cleaning function for unique freedom from maintenance (drum filter module). All settings can be conveniently controlled via APP by connecting the system to the OASE Control System. The removal of pollutants is even more effective thanks to the high-performance OASE PondPads filter media and develops its optimum performance in the new fluidised bed process (moving bed). For large pond owners who want more, high degradation rates of ammonium, ammonia, nitrite and nitrate through larger Moving Bed modules for up to 150 litres of Hel-X, especially in combination with the new OASE PondPads biofilter media, ensure even greater performance.
- Modern modular filter system for professional water quality where space is at a minimum
- Mature, professional technology with more than three years of development time
- Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
- Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit
- Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
- Outstanding filter capacity with intelligent control functions
- Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product "Made in Germany" (except pressure pump)
- System requirements: A Garden Controller Home/Cloud or InScenio FM-Master Home/Cloud is required to use the OASE Control functions.
| Dimensions (L x W x H) | mm | 1330 x 875 x 820 |
| Net weight | kg | 126.50 |
| Limited Warranty | Years | 2 + 1 |
| Number of sieve elements | Units | 16 |
| Material | GRP Duroplast/stainless steel | |
| Number of inlets | Units | 7 |
| Number of outlets | Units | 2 |
| Outlet connections | DN 150 | |
| Sludge discharge connections | DN 75 | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 66000 |
| Connection to | Bitron Gravity | |
| Installation height above water level | cm | 13.5 |
| Type of use | Gravity fed system | |
| Other | Pollutant discharge incl. slide valve | |
| Rated voltage | 230 V / 50 Hz | |
| Power consumption | W | 5 |
| Power consumption, cleaning | W | 1600 |
| Cable length | m | 5.00 + 5.00 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 60 |
| Number of nozzles/rinse quantity | 8 x 2.5 l/min | |
| Scavenging pump | 7 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Filter intake surface | cm2 | 6900 |
| Inlet connections | DN 110 | |
| Flush trough connection | DN 110 | |
| Possible water level difference | -20 mm |
