Description

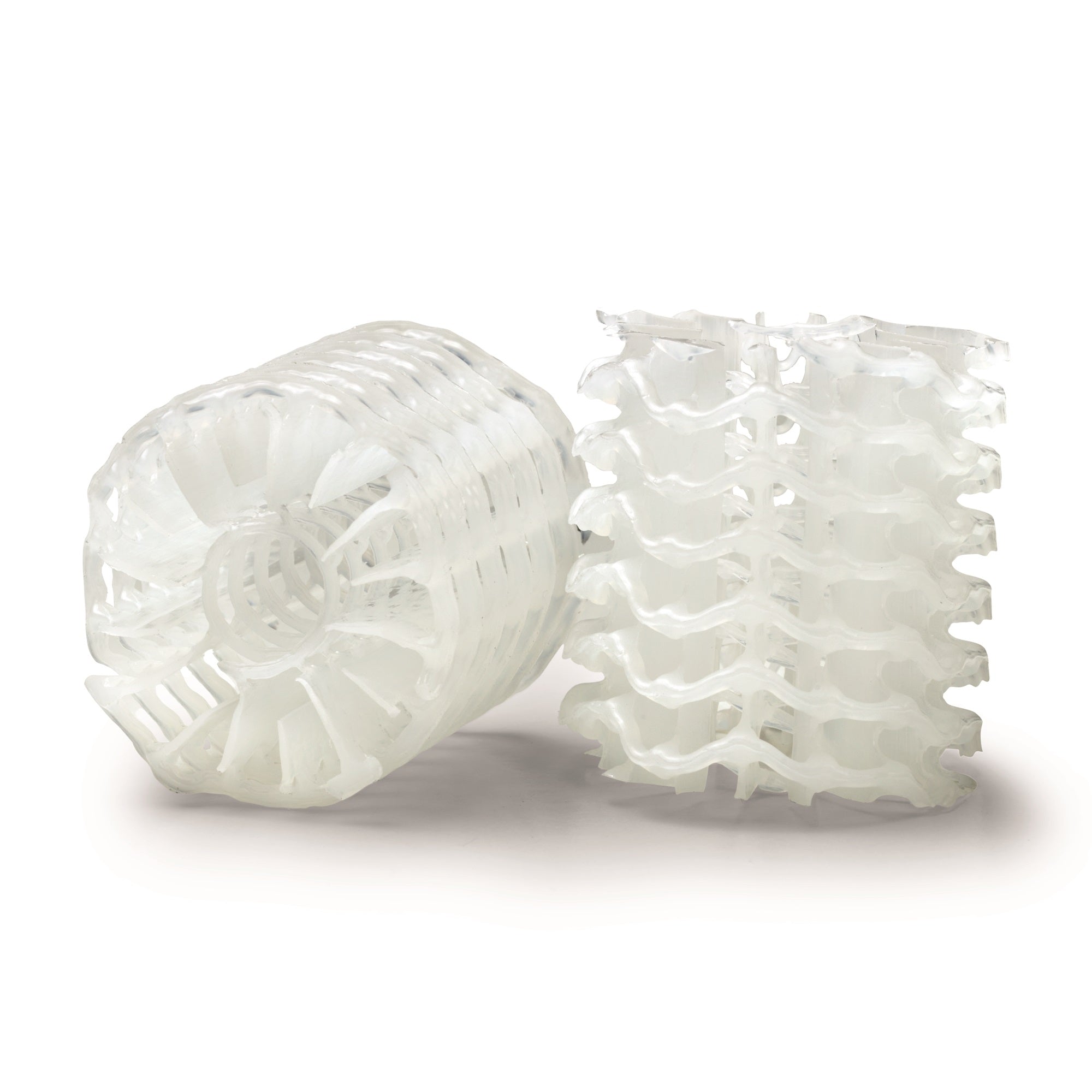

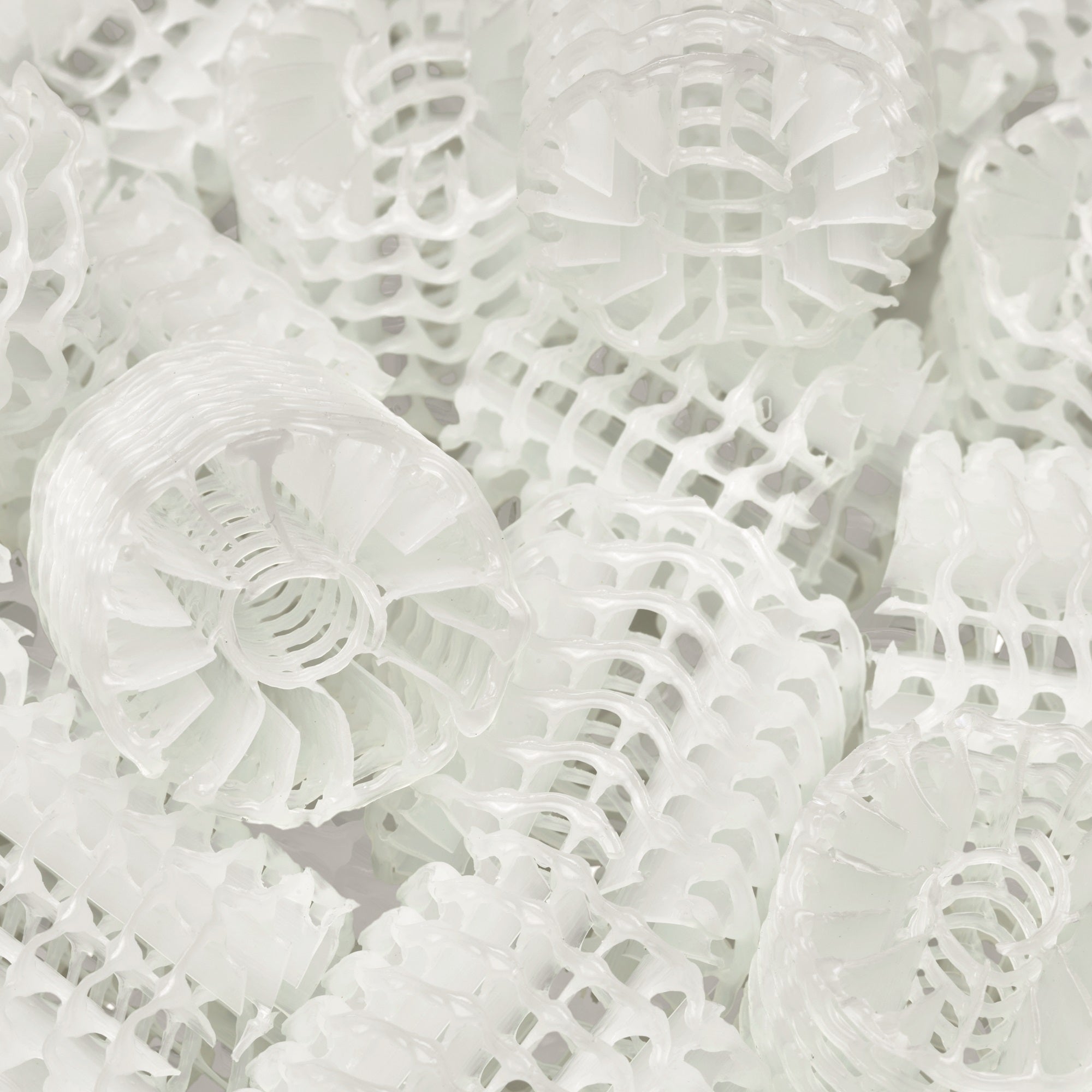

Crystal-clear water and inspiring depth of vision in the koi pond: This is ensured in the ProfiClear Premium Fleece 750 by the highly effective combination of mechanical depth filtration and generously dimensioned filter biology: Firstly, the fleece removes the smallest turbidity and dirt particles from the water. Then the bacteria colonised in the Hel-X filter medium and the integrated Clear Wave blocks ensure its clarity. This fleece filter maintains koi ponds up to 38,000 litres in size, with a flow rate of up to 25,000 l/h. This powerful performance can optionally be retrofitted to existing systems. This filter is also compatible with the modules in the ProfiClear L series. And it is smart: digital control and monitoring of the water temperature and fleece consumption are quick and easy thanks to the interface to the OASE Control System.
- THREE-FOLD EFFECT: Finest depth filtration, coupled with highly dimensioned filter biology through Hel-X material and ClearWave blocks, for even more settlement area
- FULL CONTROL: Interface to the OASE Control system for digital monitoring of water temperature and fleece consumption
- COMPACT DESIGN: High-quality GRP Duroplast ensures lasting durability; compatible with the modules of the ProfiClear L series
- EASY CARE: Easy removal of the fleece rolls thanks to the simple replacement mechanism
- FOR EACH POND: Available for koi ponds with a pond volume of up to 26,000 or 38,000 l and for swimming ponds with a pond volume of up to 68,000 or 100,000 l
- SYSTEM REQUIREMENTS: A Garden Controller Home, Cloud or InScenio FM-Master Home, Cloud is required to use the OASE Control functions
| Dimensions (L x W x H) | mm | 1370 x 890 x 835 |
| Rated voltage | 230 V / 50 Hz | |
| Power consumption | W | 5 |
| Cable length | m | 2.00 + 5.00 |
| Net weight | kg | 110.00 |
| Limited Warranty | Years | 2 + 1 |
| Fleece width | mm | 750 |
| Fleece surface submerged | m2 | 0.75 |
| Hel-X capacity | l | 111 |
| Clearwave capacity | l | 36 |
| Biological filter surface | m2 | 52.0 |
| Biological filter surface protected | m2 | 43.0 |
| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Material | GRP Duroplast/stainless steel / Plastic | |
| Inlet connections | 1 x DN 110 / 2 x Tradux 2" with non-return valve, Bitron Premium, Bitron Eco, Bitron C | |
| Outlet connections | 3 x DN 110 / 2 x DN 150 | |
| Sludge discharge connections | DN 75 | |
| Min. flow rate | l/h | 15000 |
| Max. flow rate | l/h | 25000 |
| Type of use | Pump fed system | |
| Suitable for ponds up to max. | m3 | 150.0 |
| Suitable for ponds with fish stock | m3 | 75.0 |
| Suitable for ponds with koi | m3 | 38.0 |
