Description

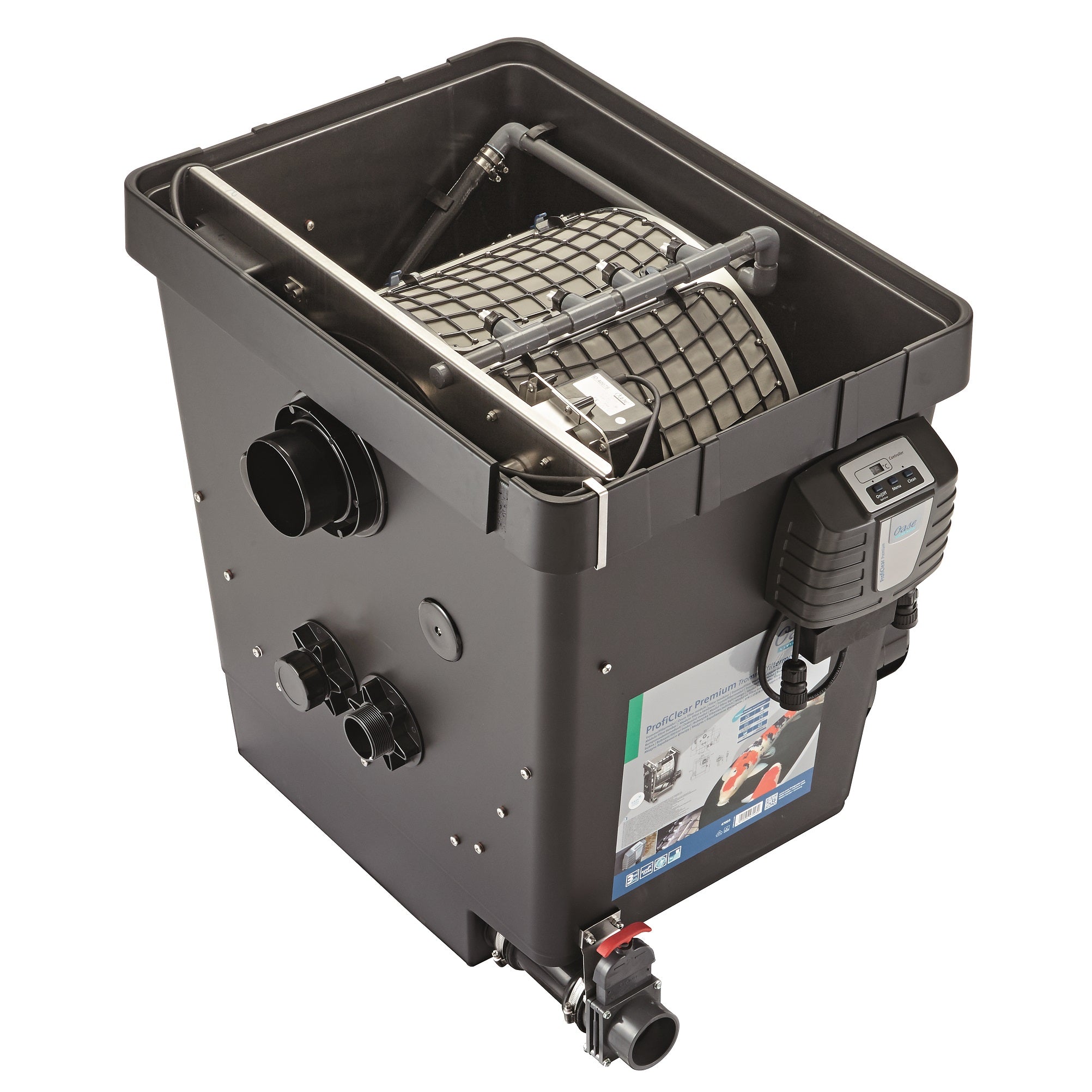

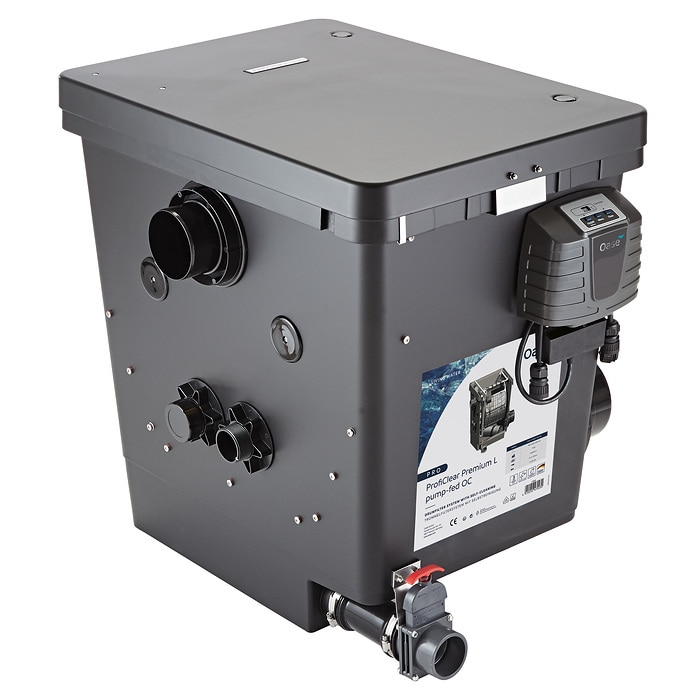

This smart modular drum filter system for koi ponds and other large bodies of water up to 260 m3. The highly efficient filter system with filtration down to 60 micron (i.e. finer than a hair) can be controlled by app via the OASE Control System (OC). Particularly convenient: The system is completely self-cleaning. Very good degradation rates for ammonium, ammonia, nitrite and nitrate. Stainless steel elements give the filter housing a high degree of stability, while access to the drum is particularly easy thanks to the freewheel function.
- Modern modular filter system for professional water quality where space is at a minimum
- Mature, professional technology with more than three years of development time
- Filtration with a filter capacity to 60 µm
- Automatic self-cleaning
- A microcontroller system, suitable for outdoor use, monitors and controls the functions

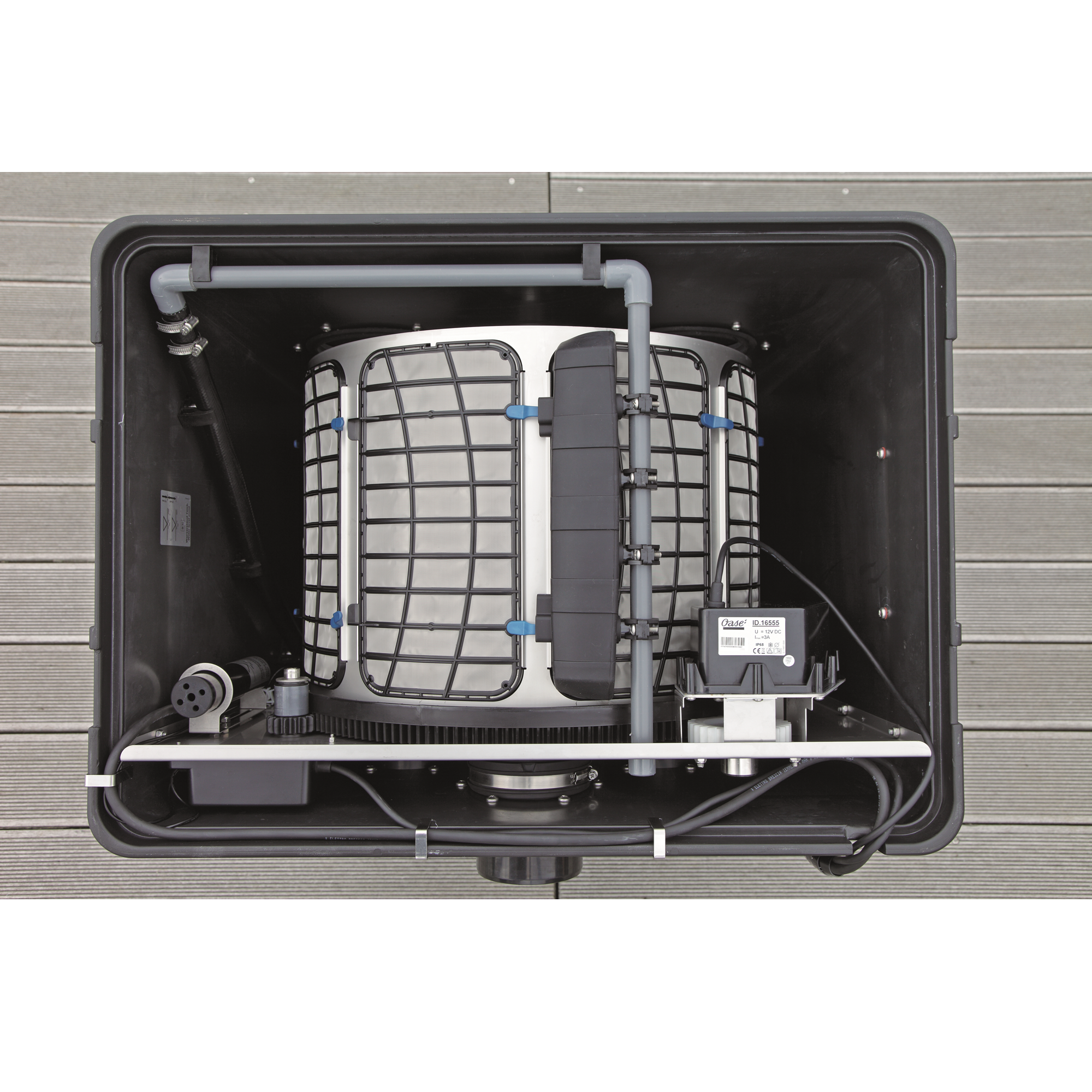

- Individually removable sieve elements (no tools required) and free-wheeling functions for easy access to the drum
- Particularly quiet in operation
- Quality high-pressure pump for flushing the drum in the scope of delivery
- Connection options for the OASE Control system
- Excellent decomposition rates of ammonium, ammonia, nitrite and nitrate
- Conveniently control all settings via an app with connection options for the OASE Control system; existing systems can be upgraded using the separately available upgrade kit
- Highly effective at breaking down pollutants and nutrients using purpose-designed filter media in the moving bed process (Moving Bed module)
- Outstanding filter capacity with intelligent control functions
- Intelligent self-cleaning function for unique maintenance-free operation (drum filter module)
- Flexible adaptation of the filter system to individual requirements (individual module)
- Innovative and reliable product "Made in Germany" (except pressure pump)
- Safety level switch prevents jamming due to debris particles
- Additional 2" inputs with non-return valve for integration of additional pumps
- Flow capacity up to 25 m³/h
| Dimensions (L x W x H) | mm | 830 x 600 x 820 |
| Power consumption, cleaning | W | 1050 |
| Net weight | kg | 74.00 |
| Limited Warranty | Years | 2 + 1 |

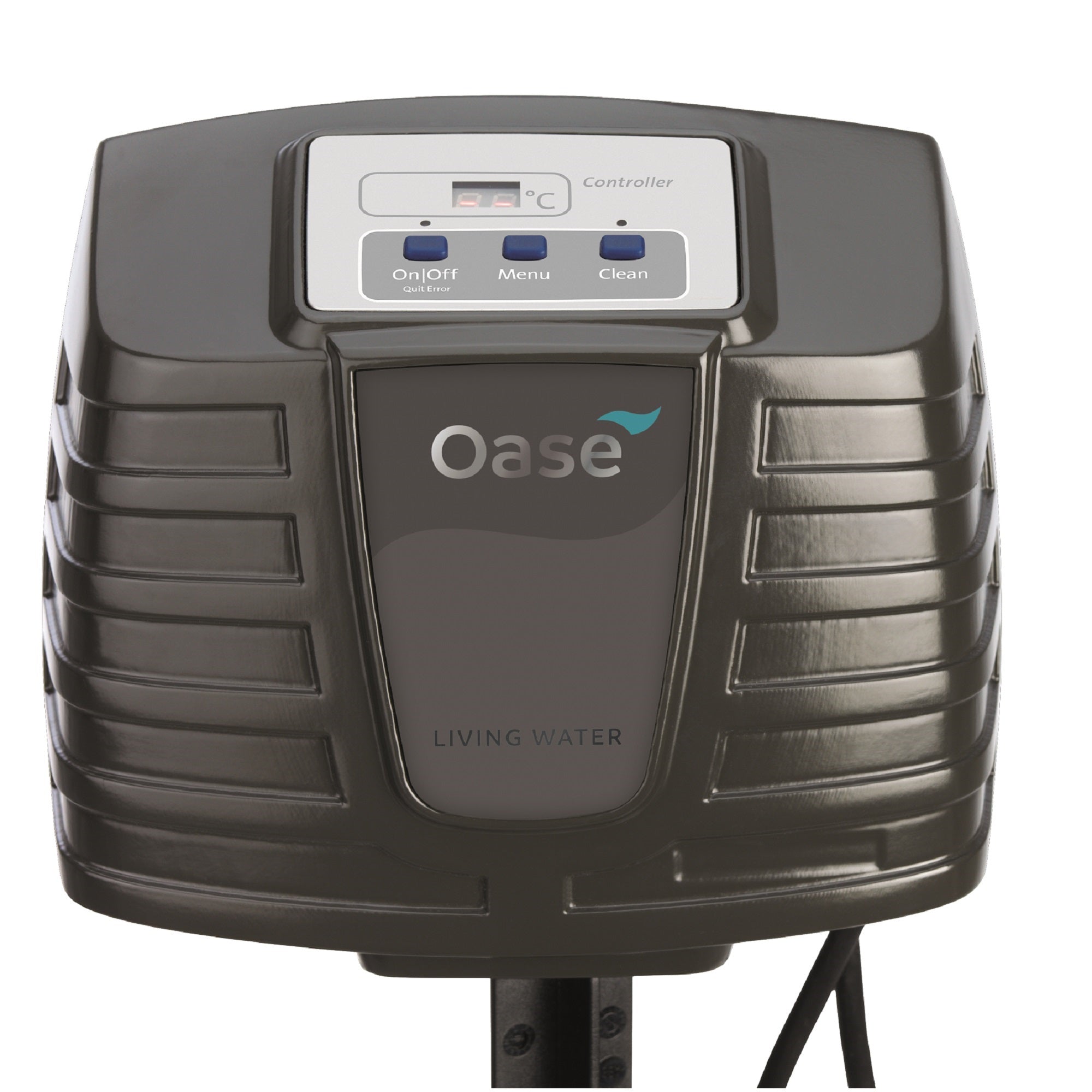

| Control unit | Microcontroller | |
| Temperature display | Digital | |
| Coarse debris extraction | µm | 60 |
| Number of nozzles/rinse quantity | 4 x 2.5 l/min | |
| Scavenging pump | 6 bar | |
| Automatic rinsing system | manually, Sensor, Time interval | |
| Number of sieve elements | Units | 8 |
| Filter intake surface | cm2 | 3454 |
| Number of inlets | Units | 2 |
| Inlet connections | mm | 50 |
| Inlet connections | 2 x 2" + Bitron | |
| Number of outlets | Units | 2 |
| Outlet connections | DN 150 | |
| Sludge discharge connections | DN 75, DN 110 | |
| Flush trough connection | DN 110 | |
| Connection to | Bitron C 72 - 110 W, Bitron Eco 120 - 240 W | |
| Min. flow rate | l/h | 10000 |
| Max. flow rate | l/h | 25000 |
| Installation height above water level | cm | 40.0 |
| Possible water level difference | 5 cm | |
| Type of use | Pump fed system | |
| Other | Pollutant discharge incl. slide valve |
